Delivering industry-leading efficiency and programmable charging for dual-battery systems—especially those with modern smart alternators—the Orion XS family combines adaptive 4-stage algorithms, rugged IP65 protection, and full remote monitoring to keep your service batteries in peak condition without risking your starter battery.

Please note that in all cases, 50A is the maximum input as well as output of the unit; thus, if using the unit in a 12/24 configuration, then 50A input at 12vNom will render ~25A output at 24vNom; in 24/12 configuration, 50A output at 12vNom will render ~25A input at 24vNom; in 12/12 or 24/24 configuration, 50A in = 50A out.

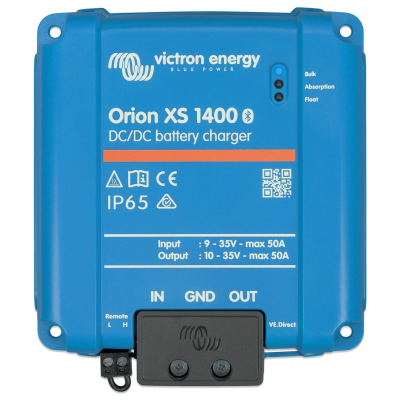

Orion XS 1400

Flexible for 12 V or 24 V systems

• Input Voltage: 9–35 V DC

• Output Voltage Adjust: 10–35 V DC

• Continuous Power: 1,400 W (50 A at 28 V) up to 40 °C

• Efficiency: 98.5 %

• Dimensions: 138.1 × 124.4 × 53 mm (5.44 × 4.9 × 2.1 in)

• Weight: 0.520 kg (1.14 lb)

• Wide Input & Output Range: Perfect for vehicles and marine systems with voltage drops or Euro 5/6 alternators

• Adjustable Charge Current (1–50 A): Protect alternators and fine-tune charging via VictronConnect in 0.1 A steps

• Engine Shutdown Detection: Charger only draws power when the engine runs, preventing starter-battery drain

• Adaptive 4-Stage Algorithm: Short absorption after light discharge, extended absorption after deep discharge—ideal for lead-acid and lithium batteries

• Comprehensive Protection: Overload, short circuit, low-temperature shutdown, undervoltage lockout, and thermal power-reduction safeguard both batteries and charger

• Scalable & Networked: Parallel multiple units for higher current; Bluetooth Smart, VE.Smart Networking, and VE.Direct/DVCC for advanced monitoring and control

• Fan-Free, IP65 Enclosure: Up to 98.5 % efficiency with aluminium circuit-board cooling—runs full power up to 40 °C without moving parts
