Reverse charge / Bidirectional charging / Jump start assist

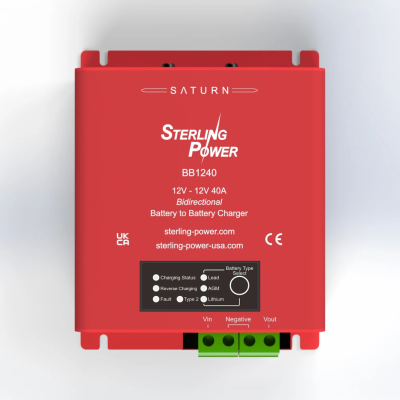

The Saturn series are Sterling's latest, most efficient, and most feature-rich models in their long line of battery-to-battery chargers. They also feature some of the highest capacities available in a single unit.

This model features bi-directional charging, designed to keep the start battery fully charged when the house bank has solar or other input. The reverse charging can be up to one-third of the unit's forward-charging rating. This is great for long-term storage, as well as when there are house loads running off the start battery. Reverse charging is triggered when the house battery is on charge and above the start battery voltage, and can be disabled if desired. It can also be manually triggered in Jump Start Assist mode to provide 20 minutes of charging in the event the start battery has been drained.

Automatic operation is configurable and can be triggered by input voltage, ignition feed, or vibration.

An optional remote displays operational status, and allows for setting custom profiles and for limiting output to 65% or 85% of max capacity.

We have tested these all day at full capacity, and found that they run very cool due to their exceptional efficiency.

This 40A charger accepts up to 8AWG wire. Please see our wire size calculator for the correct wire size for your installation.

Click below for the full installation manual
