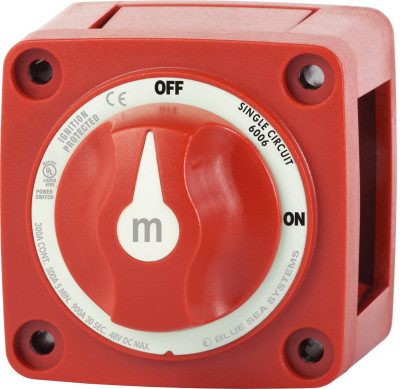

Blue Sea M-6006 Mini Battery Switch - On / Off
Blue Sea M-6006 Mini Battery Switch - On / Off
M-Series - Red - 300 Amp
Single Circuit ON-OFF Battery Switch
- Ignition protected: safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with snap-on sections protects rear contacts
- 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts 3/8" and M10 ring terminals
- 7/8" (22.22mm) stud length to accept multiple cable terminals
- Ideal for marine or RV applications
- All non-corrosive marine grade metals
- Molded in durable reinforced polycarbonate
- Tactile textures indicate knob position by feel only
- Label with international ON/OFF legends
- Removable key or knob remains positively retained
- ICON label set included for circuit identification
| Model Number: | M-6006 |
| Cranking Rating: 10 sec. | 1,500 Amps |
| Cranking Rating: 1 min. | 775 Amps |
| Intermittent Rating: 5 min. | 500 Amps |
| Continuous Rating | 300 Amps |
| Maximum Voltage Rating | 48 Volts DC |
| Terminal Stud Size | 3/8"-16 (M10) |
| Terminal Stud Torque | 120 in-lb max. |
| Barrel diam for panel mount | 1.6" (65mm) |
| Mounting holes center-to-center | 2.17" (55.25mm) - up to #10 screw |
| Size (W x H x D incl knob) | 2.82" x 2.82" x 3.07" (72 x 72 x 78 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Clearance For 4/0 AWG Cables | 1.12" (28.4mm) |
| Weight Lb (Kg) | 0.65 (0.29) |
