Blue Sea 7622 ML-ACR Automatic Charging Relay w/ Manual Control - 12vDC 500A
Blue Sea 7622 ML-ACR Automatic Charging Relay w/ Manual Control - 12vDC 500A
$221.96
In stock
MSRP Price
332.84
SKU
BS-7622
Part #: 7622
12V / 500A - Continuous
12V / 700A - Intermittent (up to 5 minutes)
12V / 1450A - 30-second Cranking

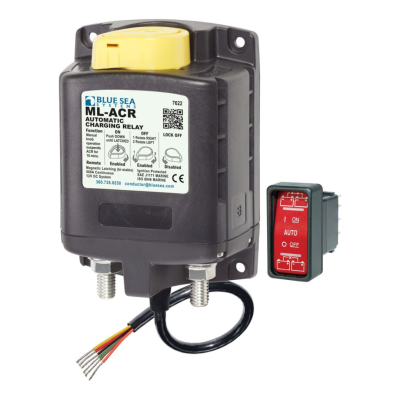

The Blue Sea Systems 7622 ML-ACR (Magnetic Latch) Automatic Charging Relay automatically combines batteries during charging and isolates batteries when discharging and when starting the engine.
- Includes ML-Series Remote Control Contura Switch (Part #: 2146)
- The ML-ACR draws very low current (<40mA to monitor terminal voltage)
- Manual control switch provides an added level of safety allowing control with or without power, and offering "Locked Off" capability for servicing
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combined
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
Specifications:
Cranking Rating: 30 sec. | 1,450A DC |
Intermittent Rating: 5 min. | 700A |
Continuous Rating | 500A |
Rated Switch Cycles | 100,000 |
Amperage Operating Current - continuous | 13mA |
Amperage Operating Current - when changing state | <7.0A |
Terminal Stud Size | 3/8" - 16 (M10) |
Terminal Stud Length | 1.5 inch (38.1 mm) |
Terminal Ring Diameter Clearance | 1.12 inch (28.45 mm) |
Cable Size | 20 AWG |
Cable Size to Meet Ratings | 4/0 AWG x 2 |
Live Current Switching | 300A @ 12V DC |
