Blue Sea 4374 WeatherDeck Circuit Breaker Panel - 4 Position

Blue Sea 4374 WeatherDeck Circuit Breaker Panel - 4 Position

Rating:
0%
$97.44
In stock
MSRP Price
146.58
SKU
BS-4374
SKU: BS-4374
Grey, Water Resistant

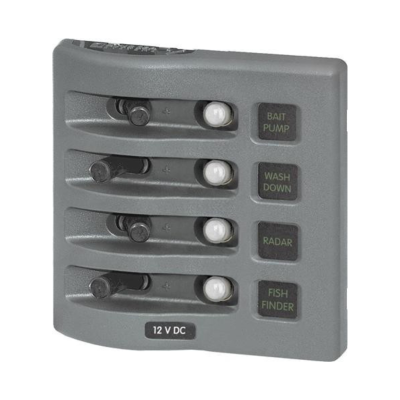

4374 - WeatherDeckâ„¢ Water Resistant Circuit Breaker Panel 4 Position - Gray

Blue Sea Systems WeatherDeck(TM) Waterproof Circuit Breaker Panels provide circuit protection for flybridge and open-cockpits with push-to-reset control. Switch guards reduce the risk of accidental switching and are designed for 12 or 24 volt systems. The weather-resistant faceplate is UV stabilized and snaps on and off for access to components and conceals mounting screws. 4.25"W x 4.3"H x 3.5"D.

  • Rated IP67-temporary immersion for 30 minutes
  • Designed for flybridge and open cockpit applications
  • Independent label backlighting allows switching and dimming
  • Compatible with all Blue Sea Systems Digital Dimmers
  • Available in 4 and 6 circuit models
  • Each panel can be mounted in four different orientations
  • UV stabilized and weather resistant faceplate
  • Constructed from corrosion resistant materials
  • Green LEDs illuminate circuit labels
  • Includes 4215 - 30 Square Format Labels


Specifications

Panel Material Reinforced Thermoplastic
Backlighting Voltage 12 or 24 Volts DC
Circuit Breaker Rating 15 amperes
Cover Material UV Resistant Thermoplastic
Switch Rating 15 Amperes Maximum
Height in" (mm) 4.30 (109.22)
Maximum Voltage Rating 12 or 24 Volts DC
Circuit Breaker Type Thermal Trip, Manual Reset Only with waterproof boot
Weight Lb (Kg) 0.97 (0.44)
Maximum Amperage Per Circuit 15 Amperes @ 12 Volts DC, 9 Amperes @ 24 Volts DC
Width in" (mm) 4.25 (107.95)
Panel Cumulative Rating 45 Amperes
Switch Type OFF/ON Toggle
Backlighting Amperage Draw 10mA / Illuminated Circuit
